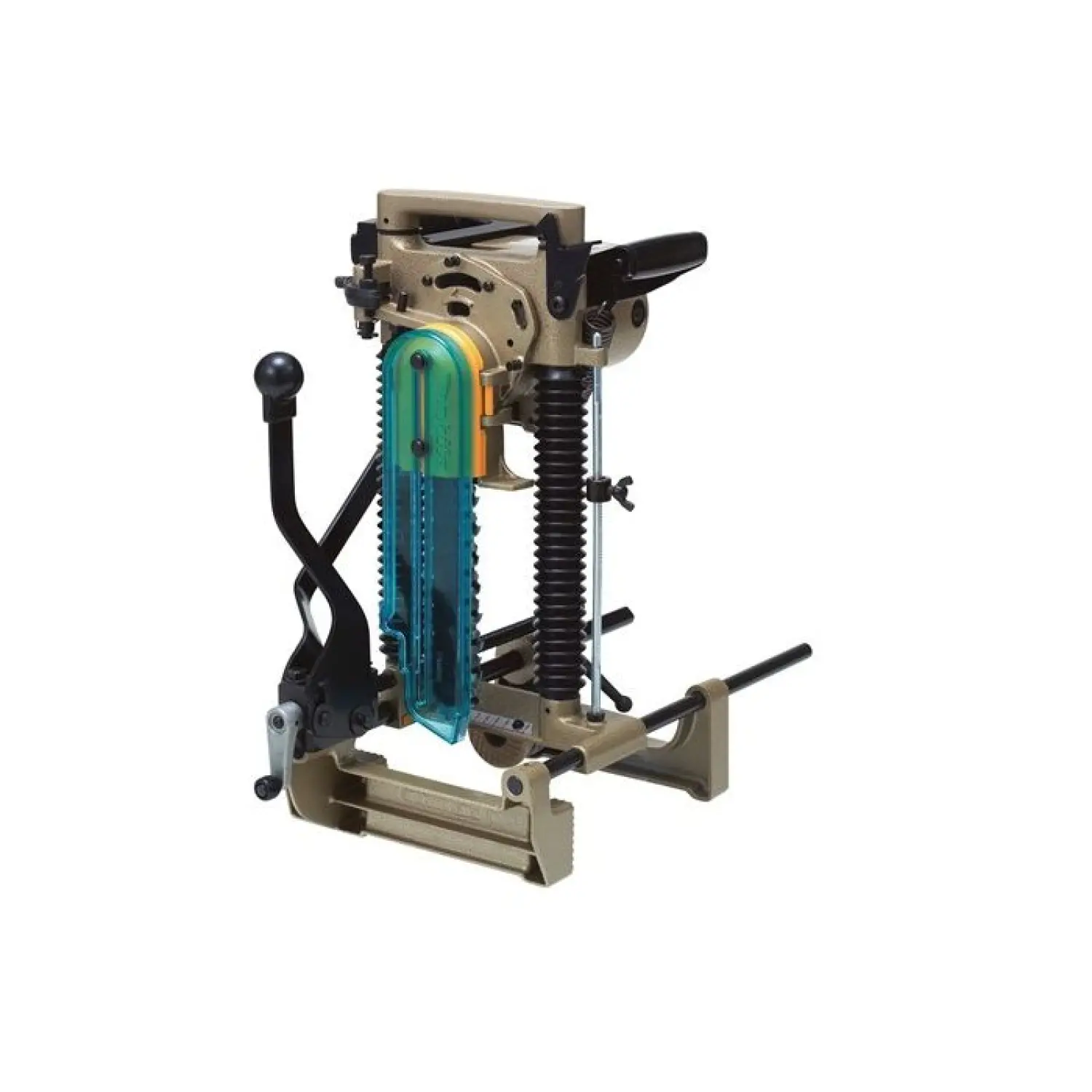

Chain Mortiser – Portable

Designed for timber frame buildings and onsite mortising.
The machine base clamps onto the workpiece, stops can then be set for the length and width of the slot to be produced – ideal for doors in situ, fencing, barns convertion work etc.

FEATURES:

• Double switching
• Can be clamped directly to doors to cut out mortise locks
• Available extra: Extension bars to extend clamping capacity to
• accept timber up to 330 mm (13″)
• Cross slide with fine adjustment
• Special vice designed to clamp the mortiser directly to the timber
• Large Capacity, high speed mortising

SPECIFICATION:

• Max. cutting depth 155 mm
• Clamping width 50-185 mm (up to 320 mm with optional clamping kit)
• Moving range Right & Left 75 mm
• Backwards & Forwards 125 mm
• Input 1,350 W
• No load speed 3,400 rpm
• Overall dimensions 540 x 360 x 390 mm
• Weight 16 kg

Included:

• Chain & Bar (16.5 mm)
• Wrench
