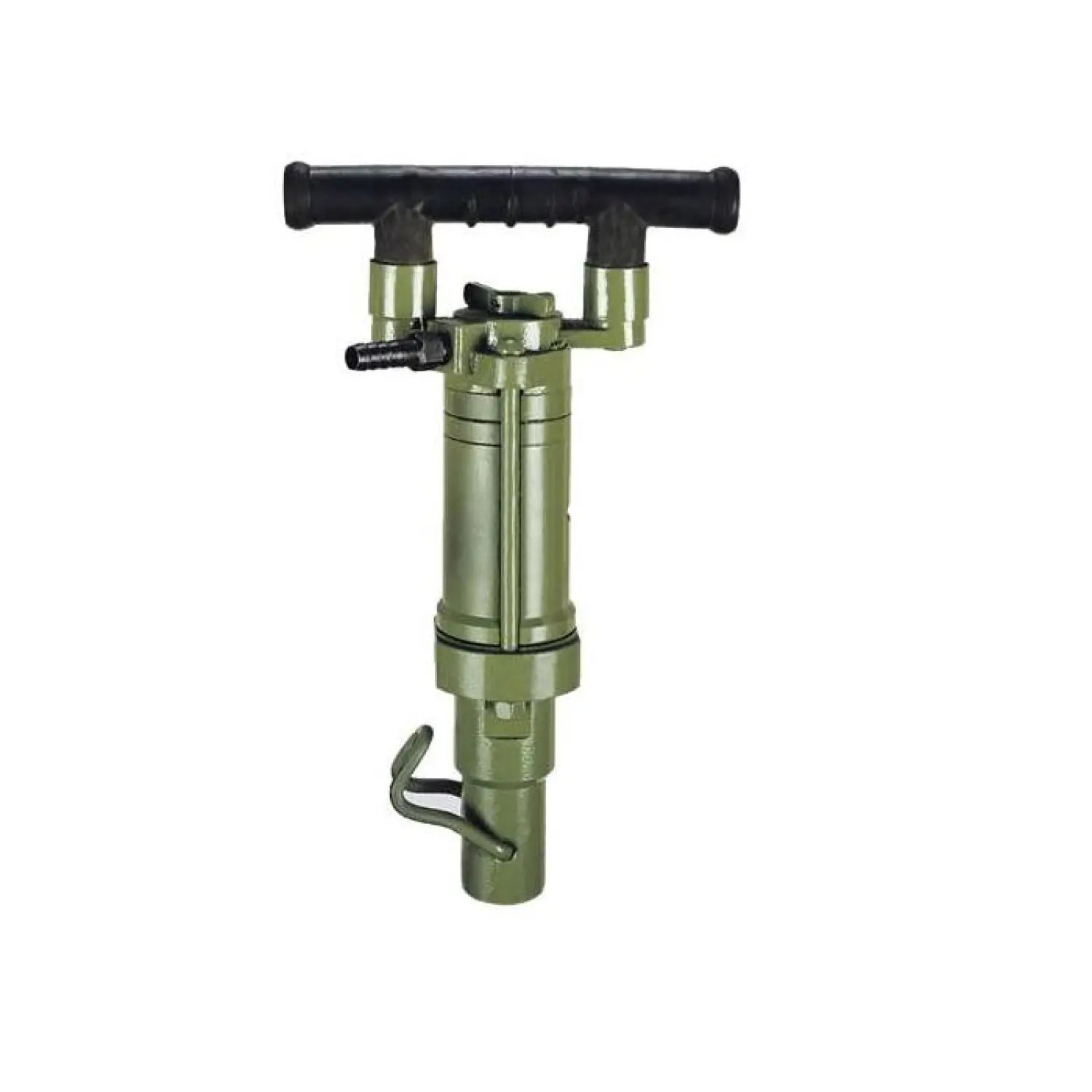

Rock Drill – Pneumatic

Pneumatic Rock Drill – for most site concrete,rock and masonary drilling

Description

Suitable for most site concrete,rock and masonary drilling,
from light or small capacity to the most heavy duty application.
Particularly applicable where the use of electricity
is not allowed or not available.

SPECIFICATION
Air Consumption 120cfm
Capacity Concrete 50mm
Weight 26kg
Vibration 7.34
Decibel 107
Weight 26 Kg
Vibration 7.34 m/s2
Vibration Standard 3-axis vector sum/vibration total value
(BS EN ISO 5349-1:2001)
Impact Power 48 J
Sound Power Level 107 dB(A)
Sound Pressure Level 87 dB(A)
Sound Pressure Distance Measured 4 m
Air Consumption 120 cfm
Consumables Jack Rods and Carbide Tips.
Integral drill steels.
Environmental Precautions: Drilling in concrete can create
dust or noise. Care should be taken to manage both in
accordance with current legislation
